Monitoring Database integration guide

Monitoring in FPT Database Engine is integrated with the FPT Monitoring system to collect metrics and logs and to provide dashboards and alerts as needed.

Step 1. Access the feature

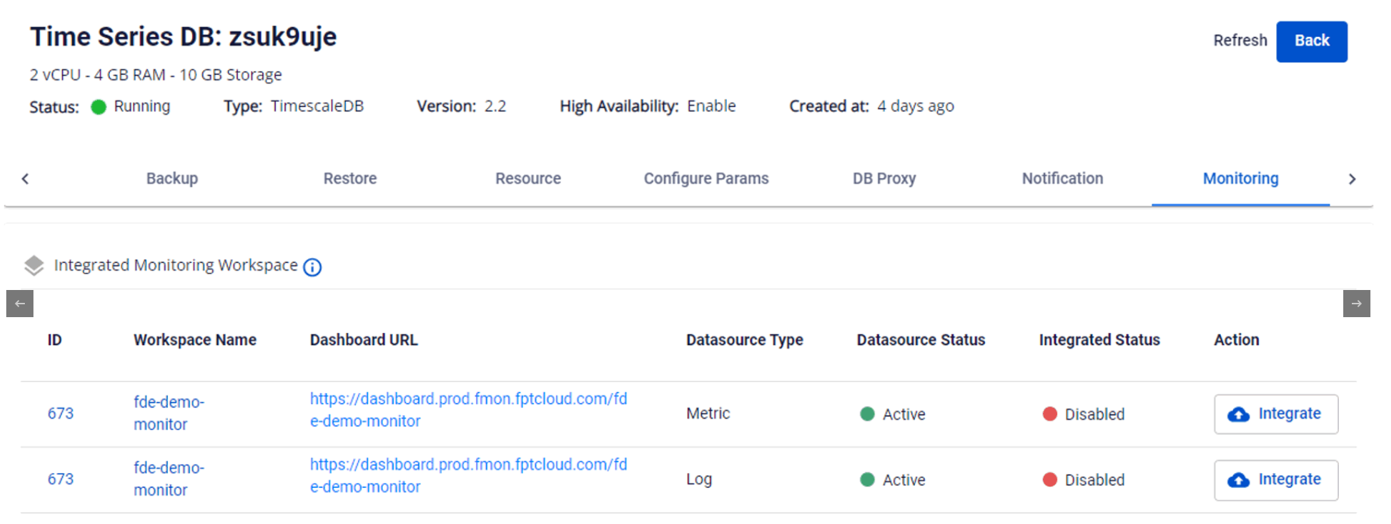

• After activating the Monitoring service and creating a workspace, open a database cluster detail page in Console Portal and select the Monitoring tab.
• The system displays a list of metrics and logs by database type. Metrics or logs not yet integrated with FPT Monitoring show Status = "Disabled".

Step 2. Integrate or disintegrate

Integrate

Enable metrics/logs collection for the database cluster.

• On the Monitoring screen, select the Integrate action for the desired workspace.
• Confirm the action in the warning dialog to complete.
• After successful integration, Integrated Status changes to "Enabled" and FPT Monitoring starts collecting the corresponding metrics.

Disintegrate

Disable metrics/logs collection for the database cluster.

• On the Monitoring screen, select the Disintegrate action for the workspace you want to stop monitoring.
• Confirm the action in the warning dialog to complete.
• After successful disintegration, Integrated Status changes to "Disabled" and the system stops collecting the corresponding metrics.

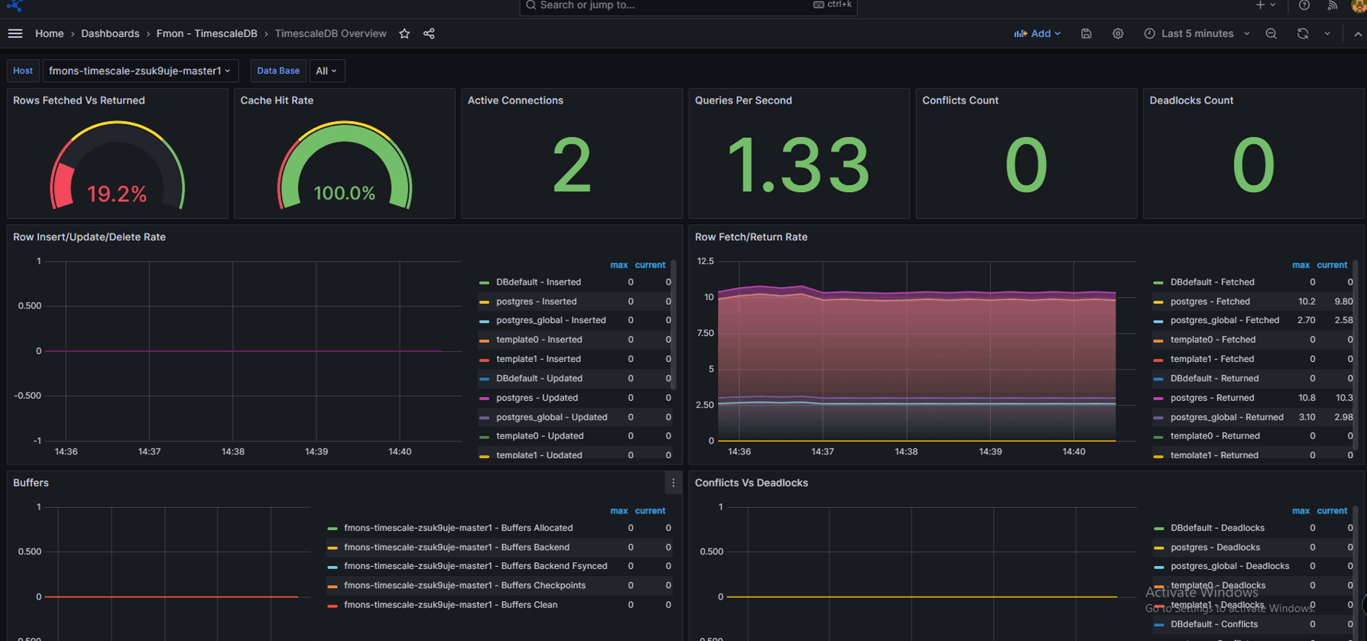

Step 3. Open the Grafana dashboard and view monitoring data

• After successful integration (Integrated Status = "Enabled"), click the Dashboard URL to open Grafana.
• Integrate the relevant dashboard templates — see Dashboard template integration.
• Open an integrated dashboard to view monitoring data.
