Create NAT rule

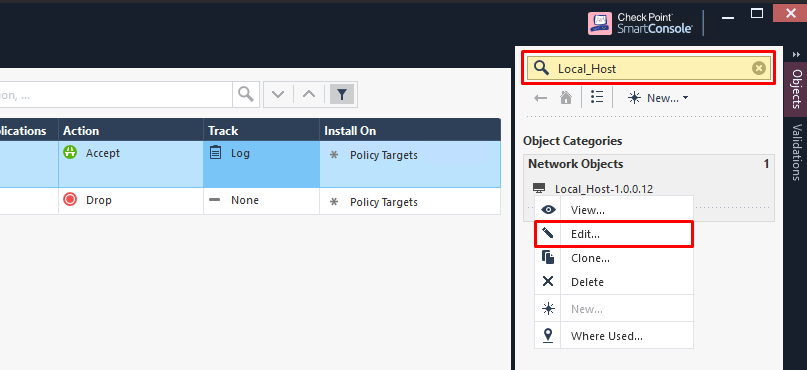

Step 1: In the Object Pane (F11) > find the object to SNAT > right-click and select Edit.

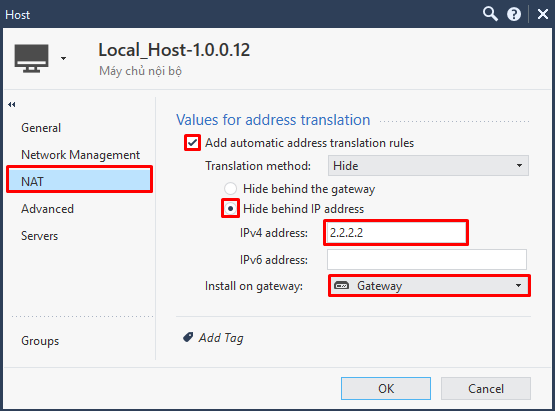

Step 2: In the menu, select NAT > check Add automatic address translation rules > check Hide behind IP address > enter the SNAT IP > select the gateway to apply.

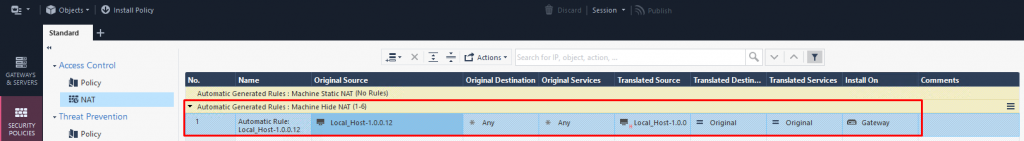

Step 3: In the menu, select Security Policies (Ctrl + 2) > select Access Control > select NAT > verify the rule was created.

Step 4: Install Policy.

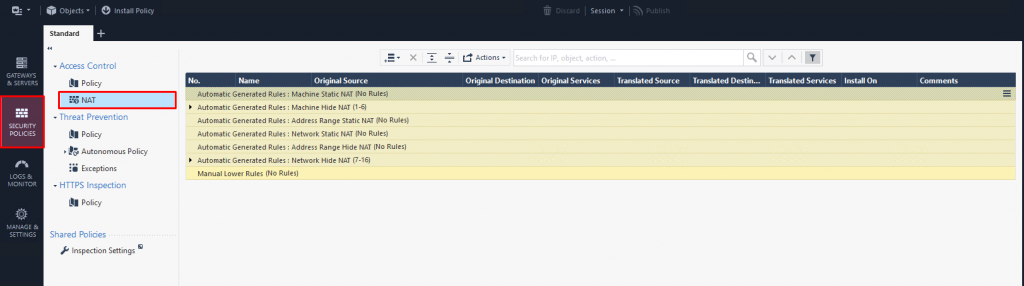

Step 1: In the menu, select Security Policies (Ctrl + 2) > select Access Control > select NAT.

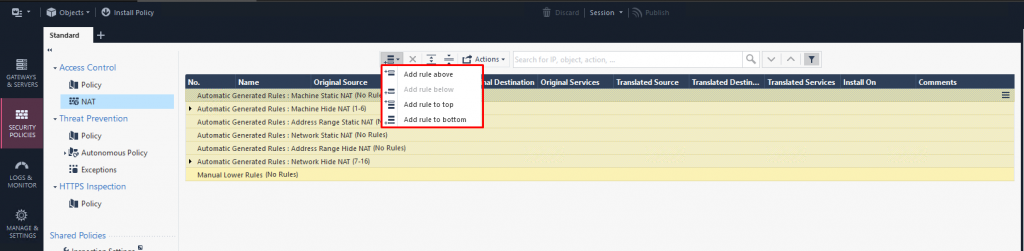

Step 2: Click Add rule above / to top / to bottom to insert the rule at the appropriate position.

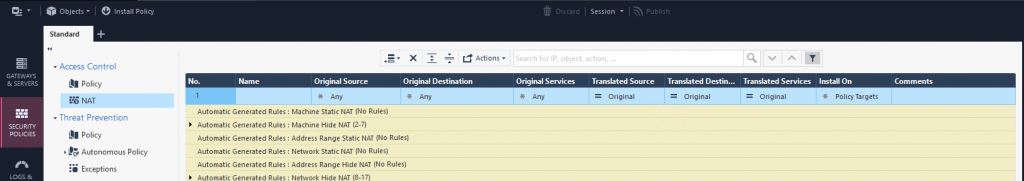

Step 3: Configure the new rule:

• Name:

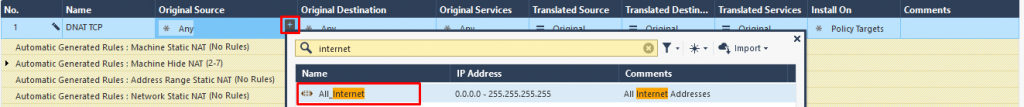

• Original Source (source IP before NAT):

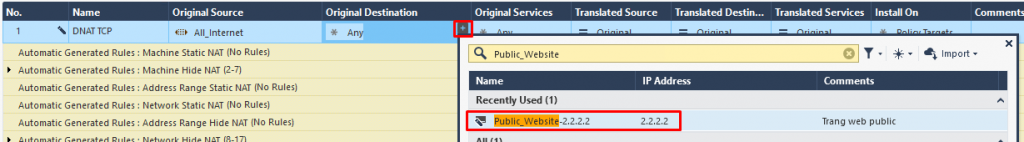

• Original Destination (destination IP before NAT):

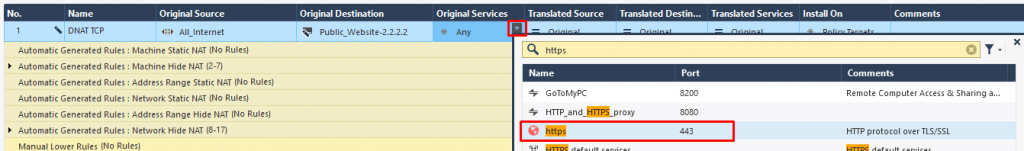

• Original Services (service/port before NAT):



• Translated Source (source IP after NAT):



Keep original source IP.

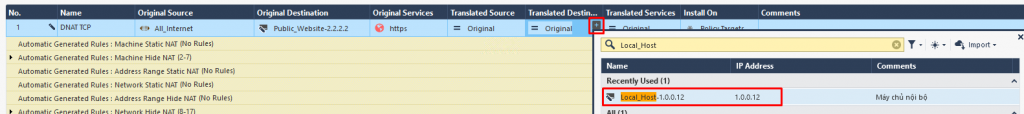

• Translated Destination (destination IP after NAT):



• Translated Services (service/port after NAT):



• Install On (device containing the NAT rule):



DNAT rule after creation:

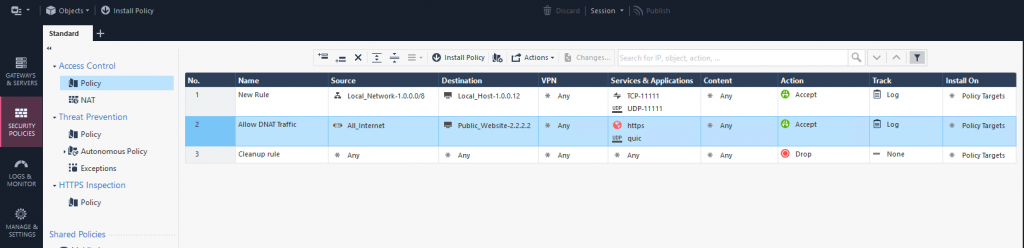

Step 4: Create a firewall rule to allow the DNAT connection.

Step 5: Install Policy.
