Network Interface

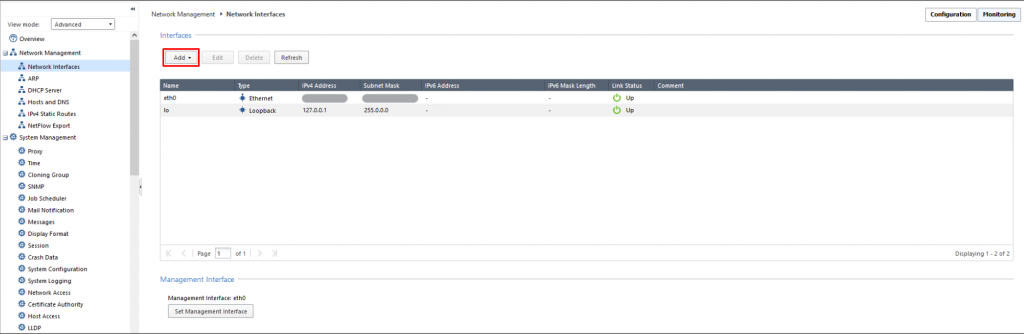

Step 1: In the menu, go to Network Management > select Network Interfaces > select Add.

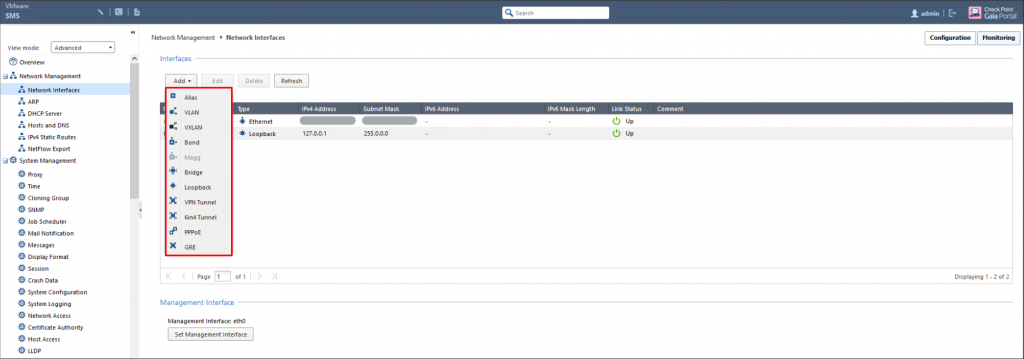

Step 2: Select the type of interface to create.

Step 3: Configure the interface according to your network plan.

• Alias Interface:



• VLAN Interface:

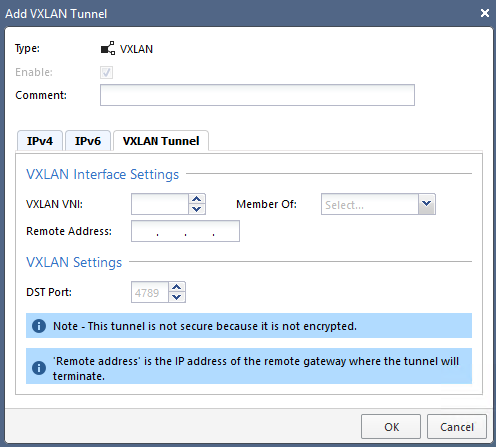

• VXLAN Interface:



• Bond Interface:



• Bridge Interface:



• Loopback Interface:



• VPN Tunnel Interface:



• 6in4 Interface:



• PPPoE Interface:

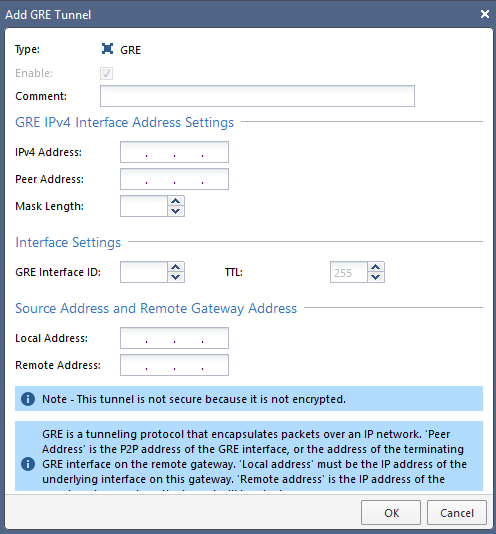

• GRE Interface:

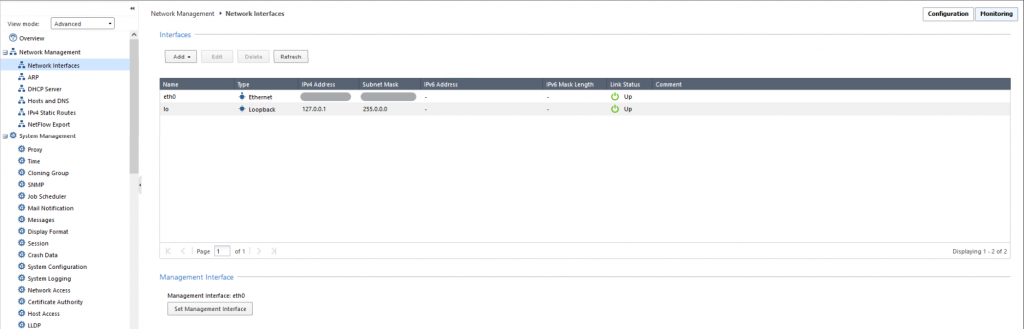

Step 1: In the menu, go to Network Management > select Network Interfaces.

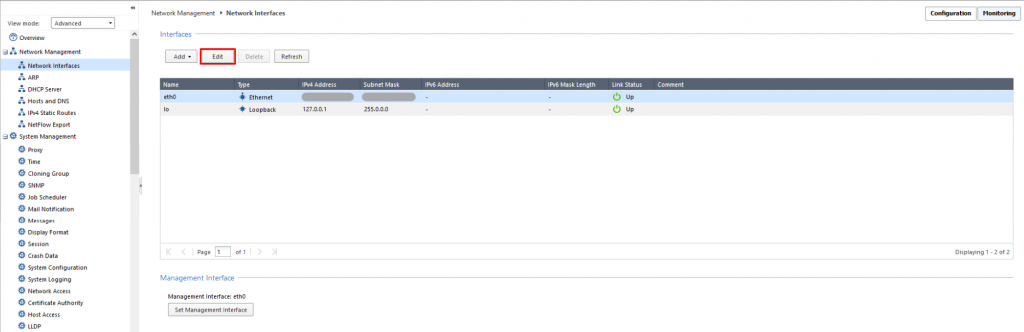

Step 2: Select the interface to edit > click Edit.

Step 3: Enter the new information > click OK to save.

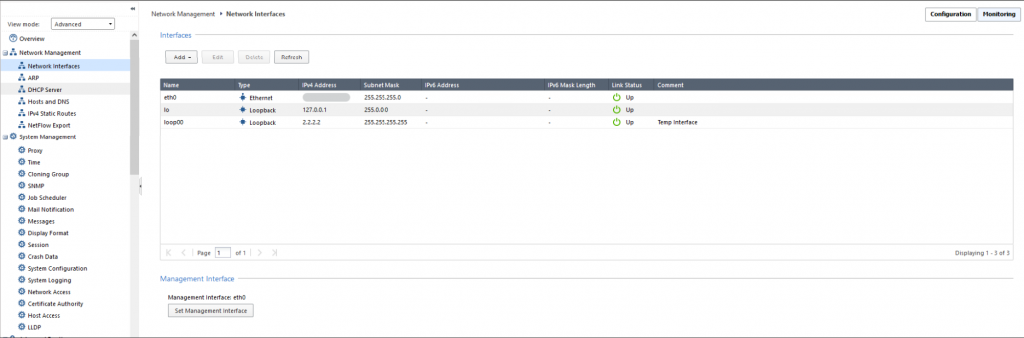

Step 1: In the menu, go to Network Management > select Network Interfaces.

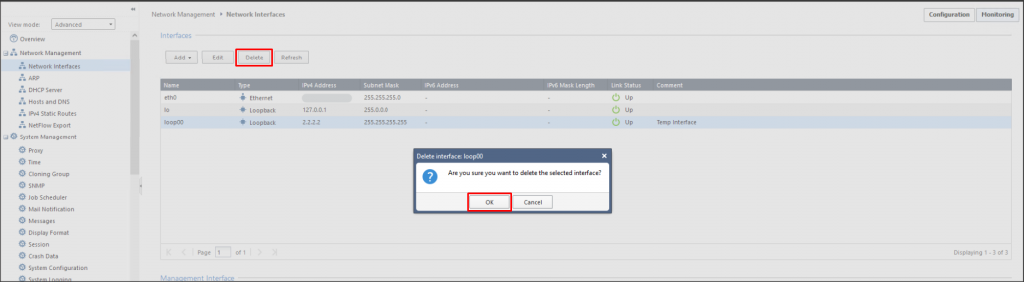

Step 2: Select the interface to delete > click Delete > click OK to confirm.
